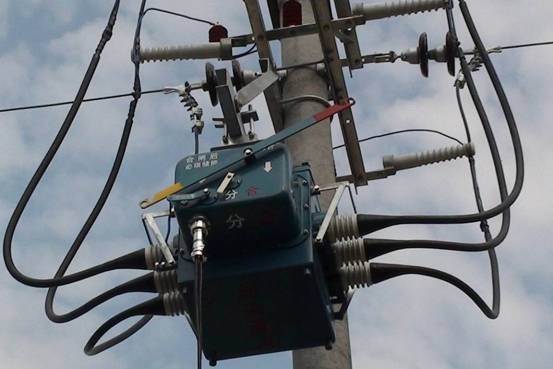

主要技術參數
| 項目 | 參數 | ||||
| 型號Type | FZW28A-12 | ||||
| 額定電壓 Rated voltage |
12kV
|
||||
| 額定電流 Rated current |
630A
|
||||
| *高工作電壓 Maximum working voltage |
15.5kV
|
||||
|
額定短時耐受電流（4s） Rated short-time withstand current |
12.5kA(rms)
|
16kA(rms)
|
20kA(rms)
|
||
|
額定短路關合電流 Rated short-circuit making current |
31.5kA
(峰值) |
40kA
(峰值) |
50kA
(峰值) |
||
| 額定頻率 Rated frequency |
50 / 60Hz
|
||||
|
工頻耐受電壓
Power-frequency withstand voltage |
對地
to earth |
50kV
|
|||
|
相間
phase to phase |
50kV
|
||||
|
斷口
between contacts |
50kV
|
||||
|
雷電沖擊耐受電壓
Lighting impulse withstand voltage |
對地 to earth
|
95 kV
|
|||
|
相間 phase to phase
|
95 kV
|
||||
|
斷口
between contacts |
110 kV
|
||||
|
合閘操作電壓 Closing voltage
|
AC220V（85%~110%）
|
||||
|
合閘操作電流 Closing current
|
8.5-12（A）
|
||||
|
合閘時間 Closing time
|
120-200ms
|
||||
|
分閘操作電壓 Opening voltage
|
AC220V（65%-120%）（可選DC220V/DC24V）
|
||||
|
分閘操作電流 Opening current
|
<5A（ <5A / <7A ）
|
||||
|
分閘時間 Opening time
|
<35ms
|
||||
|
位置信號
Position signal |
合位信號
Closing signal |
2組
|
|||
|
分位信號
Opening signal |
2組
|
||||
|
儲能信號 Energy storage signal
|
1組
|
||||
|
未儲能信號 Energy dis-storage signal
|
1組
|
||||
| 電壽命 Electrical life |
10000 次
|
||||
| 機械壽命 Mechanical life |
15000 次
|
||||
|
電流互感器變比(精度) current transformer variety scale |
600/3（3級）
600/1 或 600/5（0.5級） |
||||
|
重 量 Mass
|
185kg
|
||||
|
標準 standard
|
GB3804-2004, IEC 265-1, ANSI C37.63
|
||||
